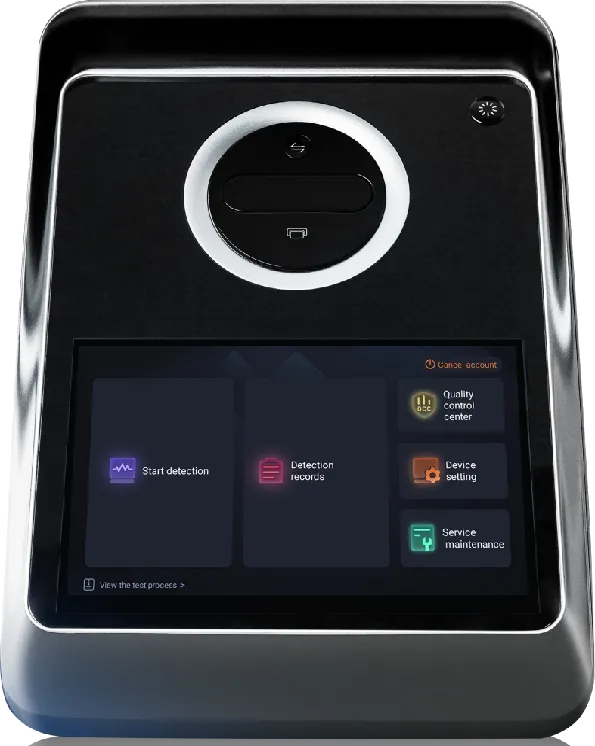

Multi-Functional Analyzer

Three Methodologies Integrated in One Machine

The combination of Cell Morphology Analysis, and FIA (fluorescence immunoassay) enriches the test items, and enable more accurate, convenient and economic tests with the unique advantage of each methodology.

The application of machine vision and Al recognition software realized more accurate classification, identification and counting of blood cells, greatly reduced the time used for microscope reexamination.

The dry-type design without fluidics system, keeps the instrument out of direct contact with sample, greatly reduced the operation cost and maintenance workload.

Technical Specifications

Principle

Cell morphology for WBC, RBC and PLT counting HGB: Photoelectric Colorimetry

Parameters

37 parameters including WBC, NEU#, LYM#, MON#, EOS#, BAS#, NEU%, LYM%, MON%, EOS%, BAS%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PDW, PCT, P-LCR, P-LCC, NST#, NST%, NSG#, NSG%, NSH#, NSH%, NLR, PLR, ALY#, PAg#, RET#, RET%.

Quality Control

Calibration

Auto calibration

Power Supply

8.1 kg

Sample Mode

Capillary, venous whole blood

Sample Volume

≤60 μL

Environment

Humidity

Date storage

Communication

100 - 240 V 50 / 60 Hz

Printer

Built-in thermal printer , external printer (optional)

Throughput

10 samples/hour

Display

10.1 - inch touch screen

Dimensions

400 mmx 350 mm x 450 mm(L x W x H)

Weight

15 kg

QC mode

Dry-type QC card

lmmunoassay Test

31 items

Customization

Available

Extensional Measurements

Biochemistry Analysis , Urine Analysis

Alarm and Warning
